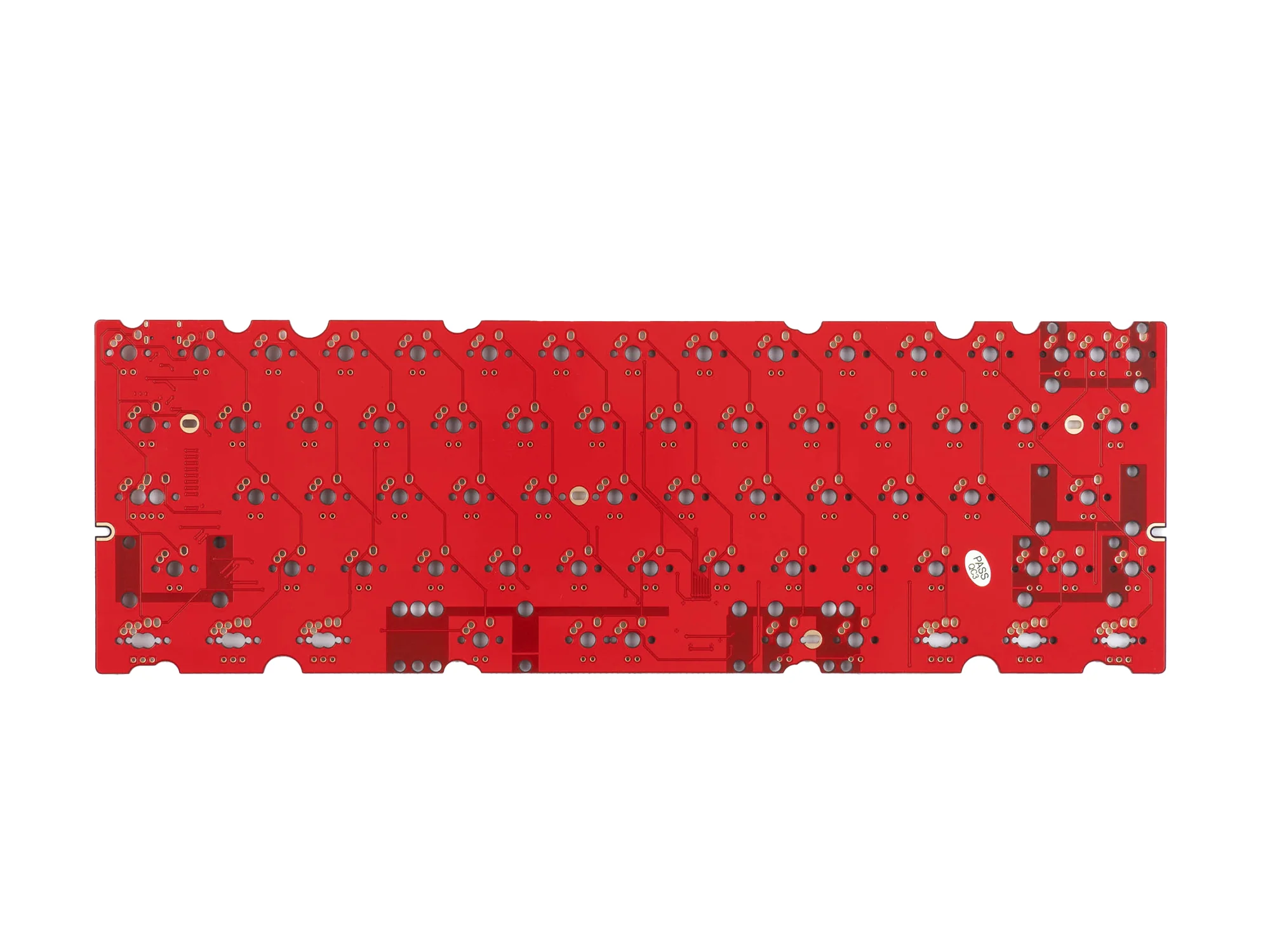

Product image 3

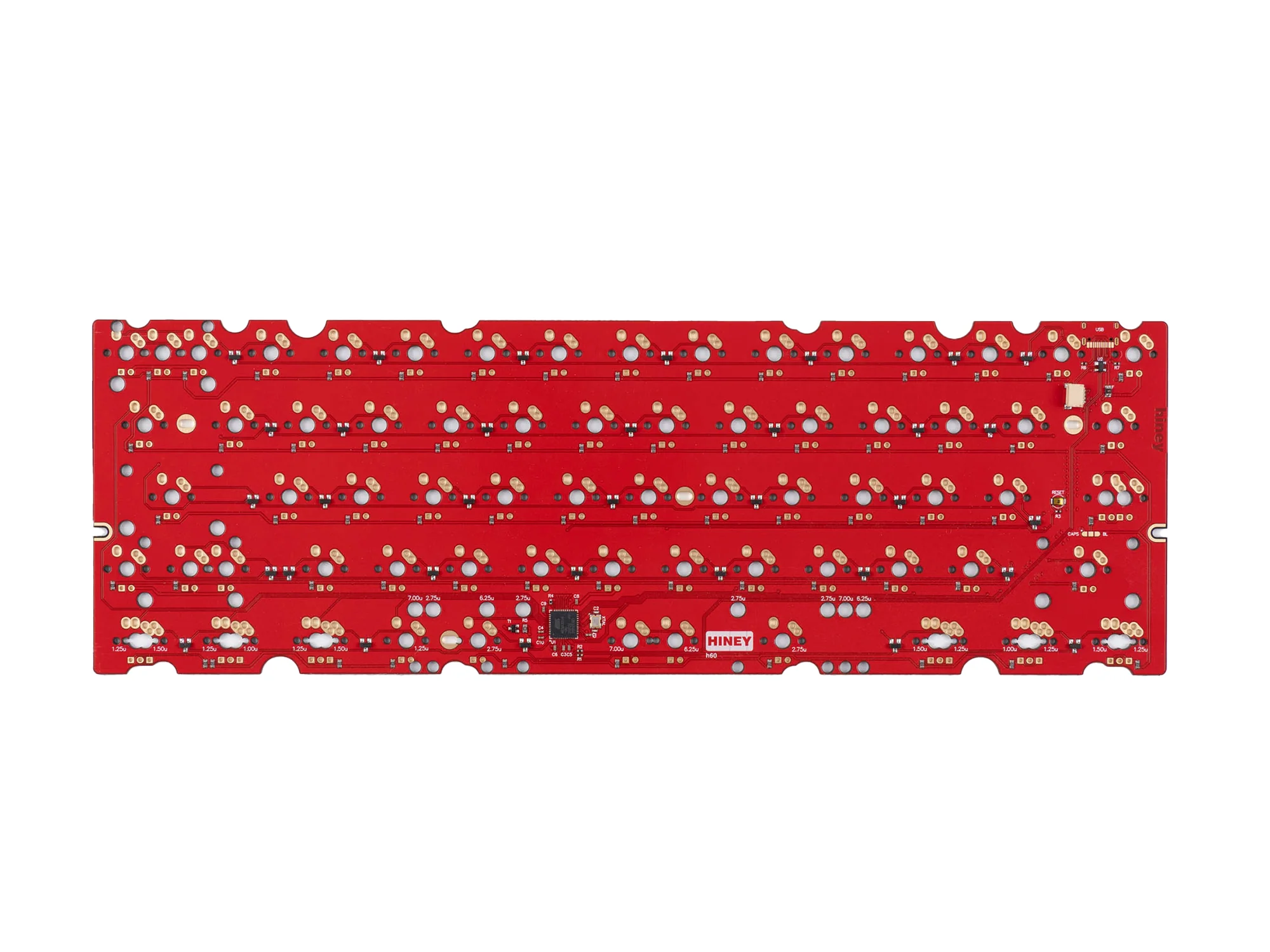

Product image 4
HomeStore

[In Stock] H60 PCB

[In Stock] H60 PCB

This PCB DOES NOT work with the Singa Unikorn. The Unikorn uses a different JST placement. Additional PCBs from this can be ordered from Singa directly.
  • 60%, GH60 layout/mounting
  • USB Type-C connector
  • Two variants:Ā
    • USB - USB Type-C. No JST connection. For boards with a USB cutout.
    • JST - JST SH 4-pin connector. No USB Type-C. Use only with daughterboards.
    • The missing connectors can be soldered onto both versions.
    • JST Version only comes with PCB, no daughterboard, you can use ai03's Unified Daughterboard.
    • RGB Underglow
  • Compatible with QMK and VIA
  • Cherry MX and Alps footprints
  • Cherry PCB-mount stabilizer support
  • Some models have RGB underglow on the bottom side of the PCB.
  • This is an ANSI-only PCB, with bottom row support. See the product images for specific layouts!
  • Black core FR4 +Ā gloss red solder mask
  • Split space: 2.75 + 1.5 + 2.75 (fits 7u spots)
  • Nominal thickness is 1.60mm
Select Option
From $13.81

Original: $46.05

-70%
[In Stock] H60 PCBā€”

$46.05

$13.81

Product Information

Shipping & Returns

Description

This PCB DOES NOT work with the Singa Unikorn. The Unikorn uses a different JST placement. Additional PCBs from this can be ordered from Singa directly.
  • 60%, GH60 layout/mounting
  • USB Type-C connector
  • Two variants:Ā
    • USB - USB Type-C. No JST connection. For boards with a USB cutout.
    • JST - JST SH 4-pin connector. No USB Type-C. Use only with daughterboards.
    • The missing connectors can be soldered onto both versions.
    • JST Version only comes with PCB, no daughterboard, you can use ai03's Unified Daughterboard.
    • RGB Underglow
  • Compatible with QMK and VIA
  • Cherry MX and Alps footprints
  • Cherry PCB-mount stabilizer support
  • Some models have RGB underglow on the bottom side of the PCB.
  • This is an ANSI-only PCB, with bottom row support. See the product images for specific layouts!
  • Black core FR4 +Ā gloss red solder mask
  • Split space: 2.75 + 1.5 + 2.75 (fits 7u spots)
  • Nominal thickness is 1.60mm
